❓ Frequently Asked Questions (FAQ)
🔹 Is Pixel chasing LED strip priced per metre?
Yes, Pixel Chasing is priced per metre. Add the required length(s) to your cart.
🔹 If I select 5 metres, will I get 5 x 1m lengths or one continuous 5m strip?
You will receive one continuous 5 metre strip unless you specify otherwise. If you select 40 metres, this will be dispatched as 8 x 5m reels, each reel with 1m tails soldered.
🔹 Does the strip come with soldered cable tails?
For orders of 5 metres in one linear length, 1 metre cable tails are soldered and included free of charge. Bespoke and shorter lengths, select custom length order to add on soldered cable tails before check-out, alternatively contact us for a quotation - our team are here to help.
🔹 Can I cut the strip?
Yes, cut along marked points every 125mm.
🛠️ Installation & Control Components:
Single Length Setup Add on:
Soldered 2-core cable tail – supplied pre-fitted for quick and reliable connection.
Multiple Length Setup Add on:
Soldered 3-core cable tails – designed for secure and reliable connections when powering multiple LED strip runs.
🔹 Correct size 24V power supply (per chart below)
Shop 5 metre kit here
SUPPORT:
Powering:
| Select compatible power supply (LED driver) based on length of LED strip. (Max run length of strip in one single run 5 metres). | (NB: When sharing a power supply between multiple lengths of LED strip, do not exceed the maximum load of the power supply) |
| Up to 1 metre | |
| 1.5m - Max load 2 metres | |
| 5m - Max load 5 metres |
|
| LED strip light specification |  |
|
| Pixel chasing LED strip cool white | Colour temperature: Cool white 6000k |
|
| Part number | LS24PIX-120-CW5 | |
| Brightness level |
Bright. Pixel chasing LED strip. |
|
| Recommended installation | Casino, bar, restaurant, gym, sports hall, theatre, signage. Domestic & Commercial areas. | |
| IP rating | IP20 | |
| Lumen Output | 1029 Lumens /m. | |
| Dimmable | Yes. | |
| Wattage | 14 w/m. | |
| Voltage | 24V. Constant voltage. | |
| LED quantity |
120 LEDS /m Pixel: 8 pix/M |
|
| Width of strip |
10mm. |
|
| Backing tape | Heavy duty 3M. Secure neatly onto clean surface. | |
| Maximum linear run length capacity | 5 metres. | |
| CRI (Colour rendering Index) | High: Rendering colours more realistically. | |
| Lifespan | Up to 50,000 hours. | |
| Cut points on the strip | Every 125mm - cut to measure. | |
|
Warranty: 5 years. |
SPECIFICATION:
Priced by the metre for a maximum single run length of 5 metres - (If longer run lengths over 5 metres are required refer to part number: LS24PIX-120-CW20).
LED strip is dispatched as one continuous length as per order quantity -Uncut, unless otherwise stated.
Cut to measure with soldered cable tails - Speak with our team to request a bespoke quotation. Alternatively, leave details and measurements for cut to measure LED strip & required length of soldered cable tails in the special instructions box provided at checkout (remember to select the correct cable & solder operation before completing your order).

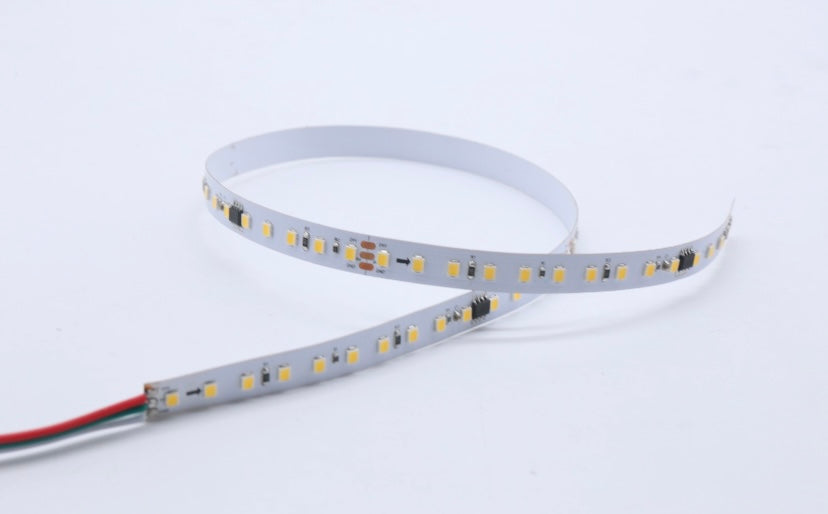

Pixel chasing LED strip cool white
